- Production
High-Precision SMT Production
in Singapore
From material preparation to final inspection, our SMT production line is built for speed, accuracy, and consistent quality.
- Overview
How Our Production Works
We believe successful products start with strong collaboration. Our Singapore-based team works closely with clients to:
Fast turnaround (as fast as 1 working day)
IPC Class II / III standard
Multi-stage quality inspection
ISO 9001 Certified Process
- Process
SMT Production Workflow
Document Preparation
It is a long established fact that a reader will be distracted by the readable content.

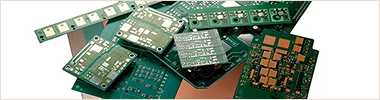

Raw Materials Preparation
Raw Materials Preparation
Put the PCB into Equipment
Loading boards into SMT production machines

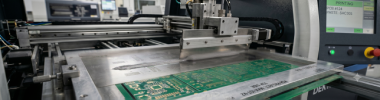

Print the PCB with solder paste
Deposit solder paste onto surface-mount pads using a stencil and squeegee.
Inspect the printed PCB
Examine bare printed circuit boards for visual defects before starting the assembly.

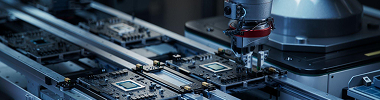

SMT
Process of mounting electronic components directly onto the surface of a PCB.
SMT quality inspection
Evaluate assembled boards to verify correct component placement and solder joint integrity.
Reflow soldering
Heat the board in an oven to melt paste and secure components.
Check the components
Verify parts against the bill of materials for correct value and orientation.

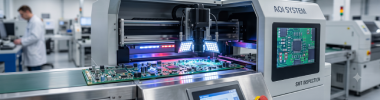

Automated Optical Inspection
Use automated high-resolution cameras to rapidly scan completed boards for defects.

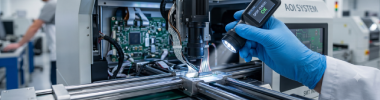

Spot check
Conduct random sampling of boards to ensure process consistency and ongoing quality.

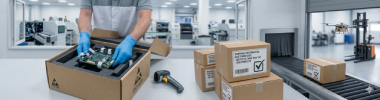

Packing and delivery
Package finished PCBs in anti-static bags and ship to the customer.
- Standards

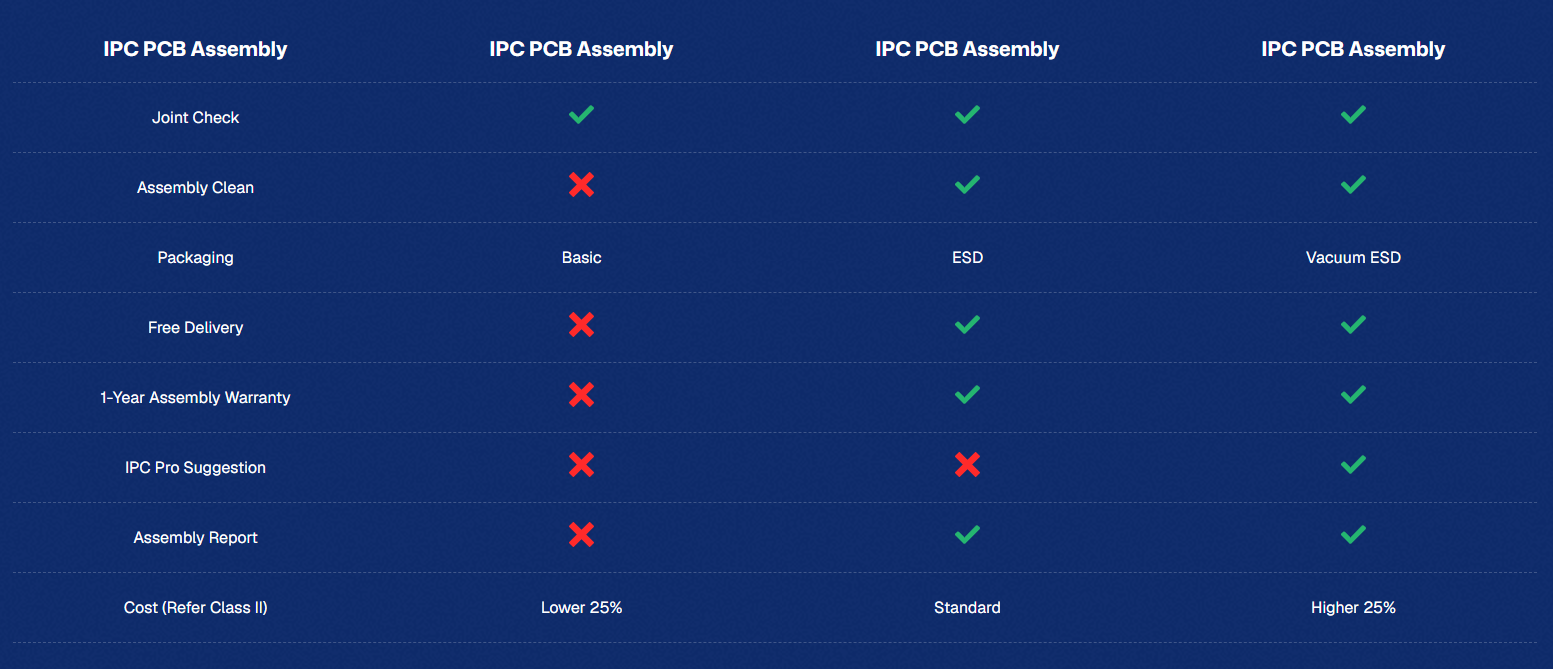

IPC Assembly Standards
We follow internationally recognised IPC standards to ensure consistent quality across all assemblie
IPC PCB Assembly
IPC Class I
IPC Class II
IPC Class III
Joint Check
Assembly Clean
Packaging
Basic
ESD
Vacuum ESD
Free Delivery
1-Year Assembly Warranty
IPC Pro Suggestion
Assembly Report
Cost (Refer Class II)
Lower 25%
Standard
Higher 25%
- Get Started
Let’s Build Your Next Project
Ready to start your PCB project in Singapore? Partner with MPN Tech for reliable, high-quality PCB and PCBA solutions.
